    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    Ask Lasest Price
    Price : negotiable
    Brand Name : H.SON
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    projectHS-6100Y
    Machine tool structurebed frameHigh rigidity integral15* stepped rail bed
    headstocklay flat
    chip removal methodrear or side row
    chip conveyorRear chip removal tank integrated or side chip removal tank split
    protection methodStainless steel full protection
    Processing rangeMaximum turning diameter of bed580mm
    Maximum swivel diameter of the slide250mm
    Maximum machining diameter500mm
    Maximum processing length1000mm
    Maximum bar through hole diameter75mm
    Shaft machining diameter250mm
    Disc processing diameter500mm
    Stroke and rapid traverseX-axis effective travel260mm
    Z-axis effective travel1000mm
    X/Z axis rapid traverserate30m/min
    RecommendedX,Z axis motors18NM
    Spindle parametersSpindle nose modelA2-8A2-11
    Spindle through hole diameter86mm105mm
    Spindle maximum speed3500r/min2500r/min
    Spindle motoris recommended15KW18KW

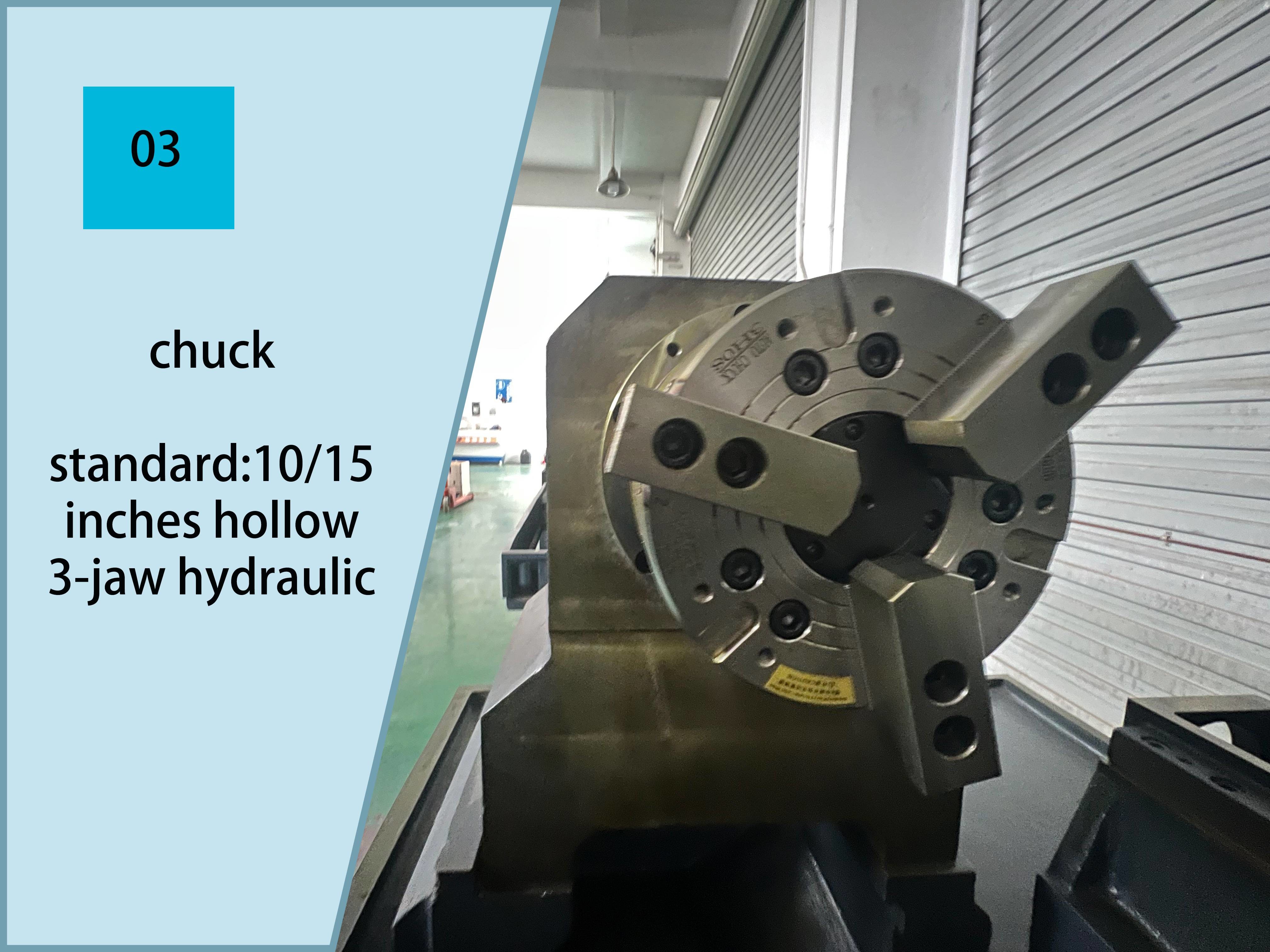

    Chuck and Rotary Cylinder Specifications1015
    Distance from spindle center to ground1014mm
    PrecisionX.Zaxis repeatability±0.003mm
    X,Zaxis positioning accuracy±0.003mm
    hydraulic tailstockTailstock Sleeve SpecificationsMT-5
    Tailstock travel750mm
    Tailstock pressurerange4-25Mpa
    Tailstock movementProgrammable hydraulic movement
    tailstock structure45mm line rail
    Screw guideX-axis railspecification45mm roller guide
    Z-axis rall specifications45mm roller guide
    X-axis screw specifications4010
    Z-axis screw specifications4010
    Screw bearing3062
    Powered Y-axis turretY-axis travel±70mm
    Rectangular hard railplastic coating
    number of statlons12T
    Applicable tool holderBMT55
    DimensionsLxWxH3350x1350x1450
    Light machine net weight5T

    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    6100Y Precision Multi Function CNC Lathe With Large Processing Range

    6100Y Precision Multi Function CNC Lathe With Large Processing Range
